Treddle Valve (‘E7’ Style) – ABC288383

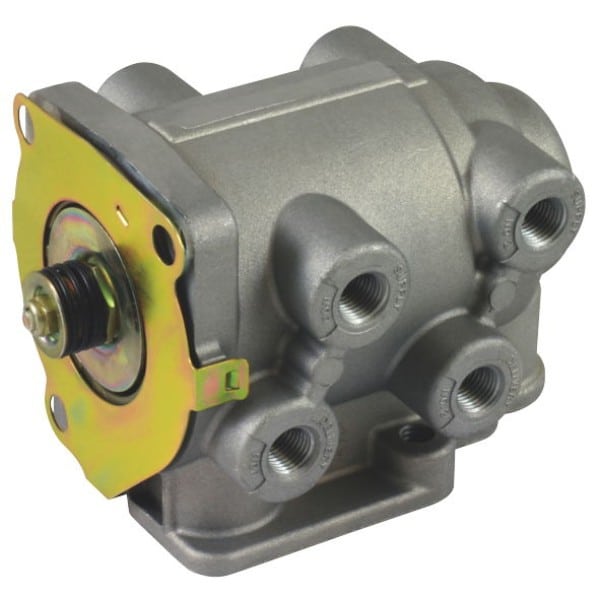

The E7 Dual circuit brake valves utilize two separate supply and delivery circuits for service and secondary braking. The number one or primary circuit portion is mechanically operated through the action of the treadle/pedal and plunger. The number two or secondary circuit normally operates similar to a relay valve, with control air delivered from the number one primary circuit. In the emergency mode (failure of the primary supply), the secondary inlet valve is mechanically opened by a push through mechanical force from the driver’s foot via the treadle/pedal, plunger and primary piston. The E-7 dual brake valve is firewall mounted, suspended pedal valve with two separate supply and delivery circuits. Threaded supply and delivery ports for both circuits are provided at the back of the valve.

DELIVERY PORTS:  4 x 1/4″  /  2 x 1/2″ P.T.

SUPPLY PORTS:  4 x 1/4″  /  2 x 1/2″  /  1 x 1/8″ P.T.

MOUNTING HOLES:  3 x 3/8″ – 16
