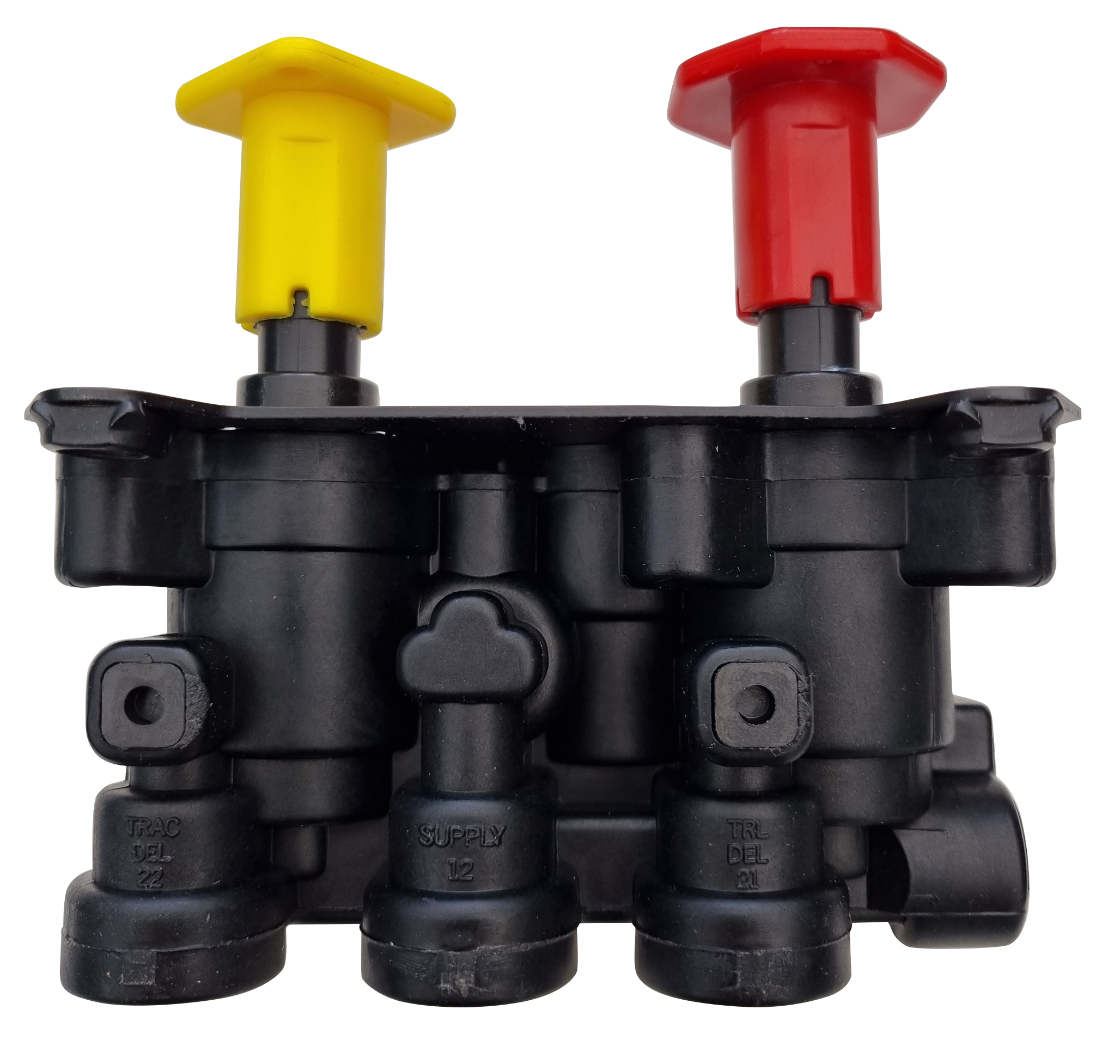

Dash Brake Valve (MV3 Style) – ABC5005646

The MV-3 dash control module combines the functions of a PP-1 control valve and a PP-7 trailer supply valve together into one device. The module is a two button, push-pull control valve housed in a single body which includes a dual circuit supply valve and a check valve. The MV-3 valve can duplicate the functions of any existing two or three valve push-pull system and has the advantage of reduced plumbing.

TRAILER DELIVERY: 1/4″ NPT

RESERVOIRS: 1/4″ NPT (2)

EXHAUST: 1/4″ NPT

TRACTOR DELIVERY: 1/4″ NPT

AUXILIARY SUPPLY: 1/4″ NPT

TRACTOR VALVE: 20 – 35 PSI

TRAILER VALVE: 20 – 45 PSI
