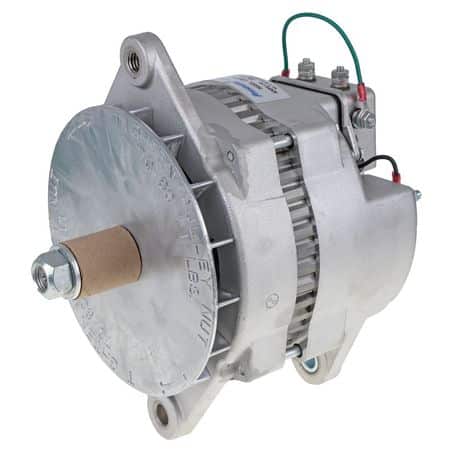

Prestolite Alternator 12V – LBA2407

$860.79 inc gst

Alternator ear mount field isolated

SKU: LBA2407 Categories: ,
Description
Adjusting Hole Diameter1/2 UNC
Inside Mounting Legs101mm
Pin CodeIR244
Pivot Hole Diameter13
Power Rating [Amp]170
Pulley SectionNot Applicable
Regulator TypeInternal
RotationCW
Shaft Diameter22mm
Suits Unit MakePrestolite
Voltage12
NoteRemove jump lead for field isolation applications. Fitted with battery sense (S) and warning light (L) terminals
*Note: If vehicle does not have a remote sense wire, a connection is required from the alternator Sense (S) to Pos Out terminals.
Alternator MountTwin Leg
Mount Cnt to Cnt216mm
New / Reman.New
Insulated ReturnYes
Shaft Dimension22
Features• Field Isolated
• Above ground
• Self excitation (optional lamp terminal)
• Remote sense
• Uses high temperature grease and seals for longer bearing life
• Fan design offers more efficient air flow and cooler operation under high output load conditions
